Description
The Guitar Pedals department take a look at this New Pedal, the Palmer 6 Output Universal-Pedalboard Power Supply with USB by Palmer is New, it is in stock at a great price and delivered to all areas of the UK. Read More for more product information, images, latest prices and how to order Guitar Pedals in the UK.
A pedalboard can be a noisy place, and choosing the right power supply can make a big difference to the noise level and clarity of your guitar tone. That’s where the PWT 06 IEC comes in. With 06 high current, individually isolated, ultra low noise outputs, each with its own dedicated regulator and custom isolated transformer, the PWT 06 IEC represents the next generation of Palmer isolated pedal power supplies. Featuring two variable voltage outputs, the PWT 06 IEC lets you adjust the voltage between 6 and 18 volts, giving you even more headroom to run your overdrive pedals, as well as the “dying battery” sound that many guitarists love. In addition, the Palmer PWT 06 IEC has a USB C and USB A output with 18W so you can charge your mobile devices or even power your MIDI keyboards. We designed the PWT 06 IEC to address guitarists’ main pain points when it comes to powering their precious effects pedals, so you can perform with complete peace of mind, so you can perform with complete peace of mind, knowing that your pedals and rig will sound as good as they can.
Key Features:
- Universal power supply with IEC mains socket
– Easy to power, easily implementable into a existing power conditioner set up. - USB C and USB A power outlets with 18W
– Charge your USB devices, Midi keyboards and other items on stage. - Short circuit and overload protection for each outlet:
– In the UK most of our plugs and buildings have fuse boxes and a lot of plugs have fuses built in to help protect against power surges. However, just in case your playing gains an applause from Zeus onto your venue and a power surge gets passed this, each power output on the PWT has surge protection so your pedals will be nicely protected from scary power surges.
Specifications:
- Input Voltage: AC 100 – 240 V
- Outputs:
– Single Isolated DC Outputs: 12
– Output 1: 6-18V (250 mA max)
– Output 2: 9V (500 mA max)
– Output 3-4: 9V / 12V (250 mA max)
– Output 5-6: 9V / 18V (250 mA max)
– non-isolated DC output: 9V (2000 mA max)
– Output connectors: 2.1 x 5.5 mm
– Output voltage: 6V – 18 V - Maximum details:
– Output Power: 24 W (Ausgang 1-6)
– Power Consumption: 70W
– Individually isolated outputs: Yes
– Polarity: Center negative - USB-C / USB-A Output Power: 18 W max.
- Controls: Mains switch, output voltage selector and switch
- Dimensions:
– Width: 168mm / 6.61“
– Length: 93mm / 3.66“
– Height: 42mm / 1.65“
– Weight: 480g / 1.06lbs - Included:
– 4x rubber feet

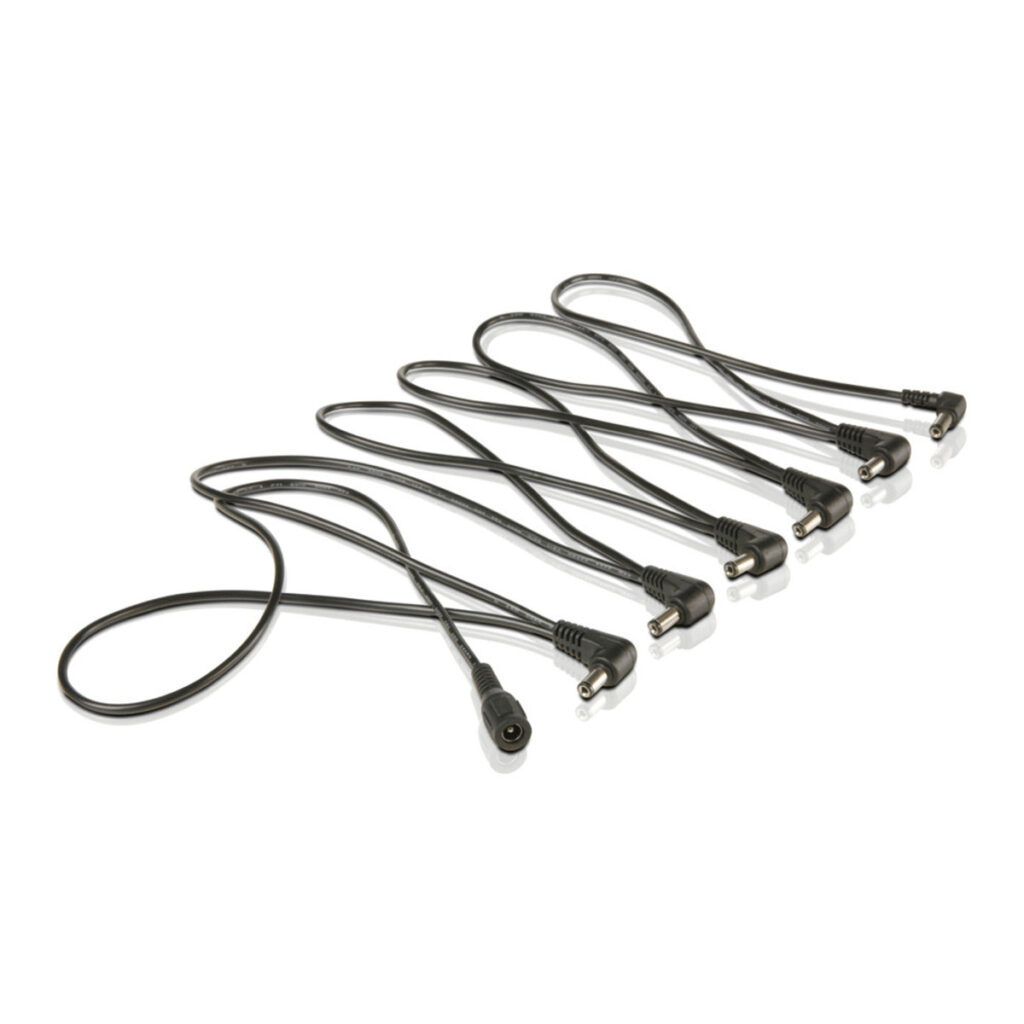

– 9x DC cable (30cm (11.81”) / 60cm (23.62”))
