Description

The Delay Pedals department take a look at this New Delay in , the Catalinbread Belle Epoch EP3 Tape Echo Emulation Pedal Black and Silver finish by Catalinbread is New, it is in stock at a great price and delivered to all areas of the UK. Read More for more product information, images, latest prices and how to order.

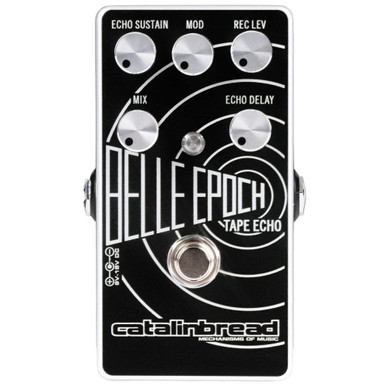

The Catalinbread Belle Epoch has tape echo sounds so authentic, you’d swear there was real tape inside the pedal! Inspired by the Maestro Echoplex EP-3 model, perhaps the most famous tape delay ever, the Belle Epoch features everything Catalinbread loves about the EP-3 in a small, maintenance-free pedal format.

Controls

• MIX: Replicates the functionality of the Echo Volume control on the EP-3 and uses the same basic passive mixer circuit.
• REC LEV: Sets how hard the “tape” or delay line is hit. It does not affect your dry signal and only affects the initial first repeat.
• MOD: Influences the amount of random tape “wow” and flutter effects in the echoes.
• ECHO SUSTAIN: Affects how much delay signal is fed back to the delay line to get multiple repeats.
• ECHO DELAY: Controls the delay time, from about 80ms all the way up to 800ms.

Under The Hood

• Gain Trimmer: This sets the gain of the preamp. It is factory-set just above unity gain. At maximum gain, you’ll be treated with a gloriously huge fuzzy boost that sounds amazing into a cranked amp!
• Buffer/True-Bypass Switch: From the factory, Catalinbread ship the Belle Epoch in true-bypass mode. You can use this switch to set it to “buffer” mode, to counteract treble loss when using long cable runs.

Specifications

• Power Source: 9-18V DC
• Current Draw: 60mA
• Max Delay Time: ~700ms
• Dimensions: 4.33” X 2.36” X 1.93”
• Weight: 0.4 lbs
